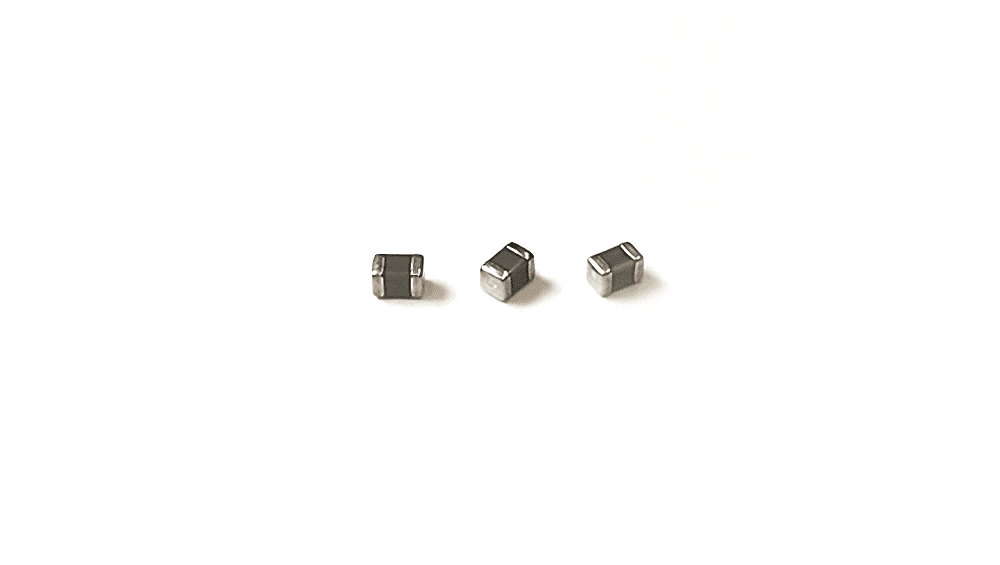

▷ The CL10Z106MP96PN# product, which implements a capacitance of 10㎌ at a rated voltage of 10V in a 0603 inch (1.6×0.8mm) size and meets X7T specifications (temperature range: -55 to 125℃), has been developed as the world's first and is now in mass production. Samples are now available upon request.
▷ As the trend toward high integration, high density, and miniaturization of ADAS Radar, LiDAR, HPC, IVI communication (WiFi/BT/5G/NAD) modules and SiP modules continues to spread, the demand for miniaturization of multilayer ceramic capacitors (MLCCs) has also been increasing.
▷ This new product maintains the same capacitance and rated voltage as the existing 0805 inch (2.0×1.25mm) product, while reducing the size to 0603 inch (1.6×0.8mm). In doing so, it simultaneously meets the requirements for miniaturization, high capacitance design, high-temperature (125℃) stability, and voltage reliability for the given application.
▷ Samsung Electro-Mechanics has strategically expanded its product coverage to include the 0603 inch (1.6×0.8mm) size, rated at 10V and 10μF, by leveraging proprietary advancements in the miniaturization of ceramic and electrode materials, coupled with ultra-precise stacking technology.
Samsung |
Size (inch/mm) |
Capacitance |
Rated Voltage |
TCC |
| CL10Z106MP96PN# |
0603/1608 |
10㎌ |
10V |
X7T |
(X7T: Capacitance change rate in the temperature range of -55°C to 125°C, +22~-33%)

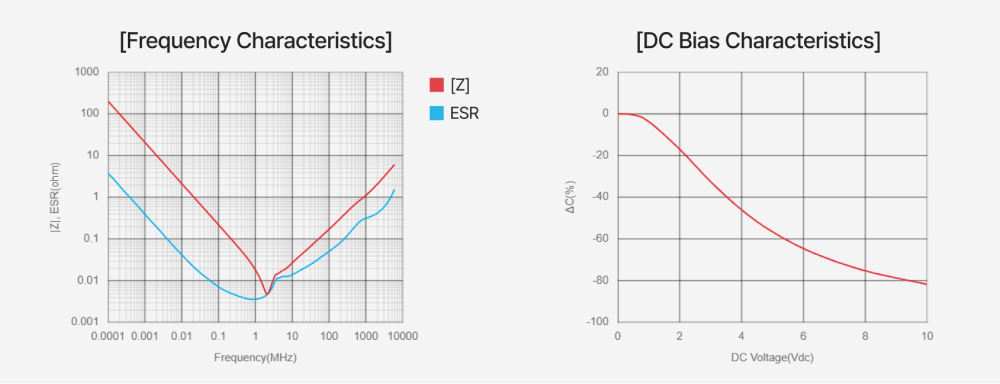

Characteristic Data
