MLCC Applied Voltage

SAMSUNG MLCC Applied Voltage




MLCC Applied Voltage

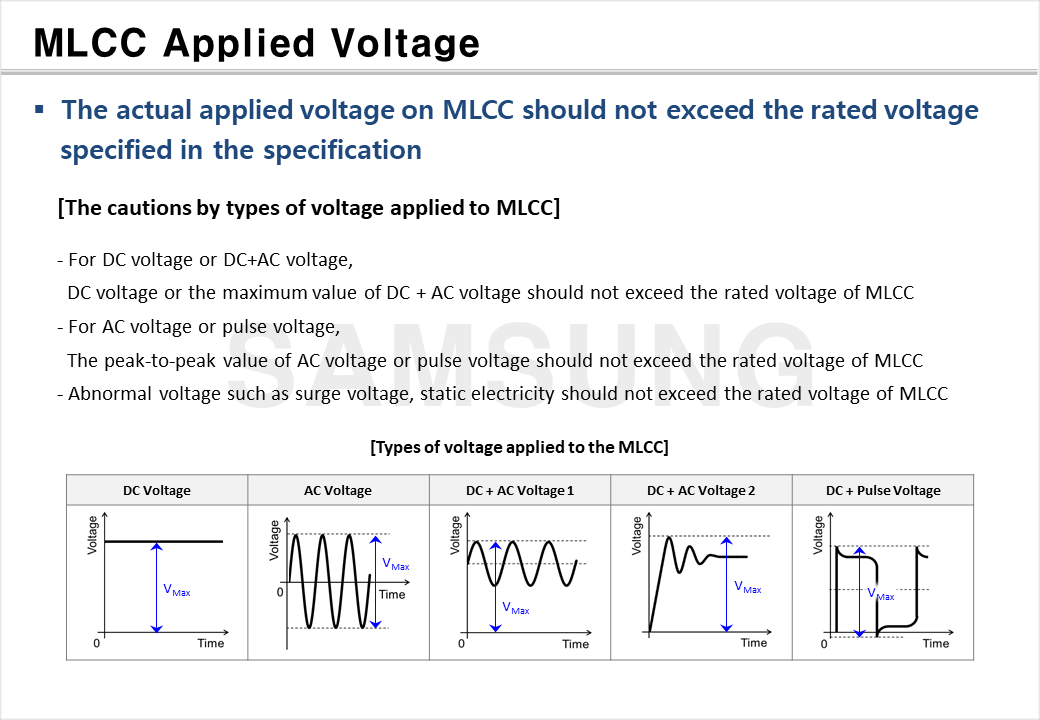

SAMSUNG MLCC Applied Voltage The actual applied voltage on MLCC should not exceed the rated voltage specified in the specification [The cautions by types of voltage applied to MLCC] - For DC Voltage or DC+AC voltage, DC voltage or the maximum value of DC + AC voltage should not exceed the rated voltage of MLCC - For AC voltage or pulse voltage, The peak-to-peak value of AC voltage or pulse voltage should not exceed the rated voltage of MLCC - Abnormal voltage such as surge voltage, static electricity should not exceed the rated voltage of MLCC [Types of voltage applied to the MLCC] DC Voltage > x축 Time, y축 Voltage, 일자로 선 그어져 있음. 선과 x선 사이 Vmax로 표현 AC Voltage > x축 Time, y축 Voltage, 파동이 0을 기점으로 +, -로 3번 그려져 있음. 그래프 최상단과 최하단 사이 Vmax로 표현 DC + AC Voltage 1 > x축 Time, y축 Voltage, 파동이 0점보다 위에 3번 그려져 있음. 그래프 최상단과 x축 사이 Vmax로 표현 DC + AC Voltage 2 > x축 Time, y축 Voltage, 그래프가 올라가다 파동 2번, 후에 일자로 이어짐. 그래프 최상단과 x축 사이 Vmax로 표현 DC + Pulse Voltage > x축 Time, y축 Voltage, 그래프 올라가고 일직선으로 이어지다 내려감. 다시 일직선으로 이어지다 올라감. 그래프 최상단과 x축 사이 Vmax로 표현
