技术 - Article 2023.10.12

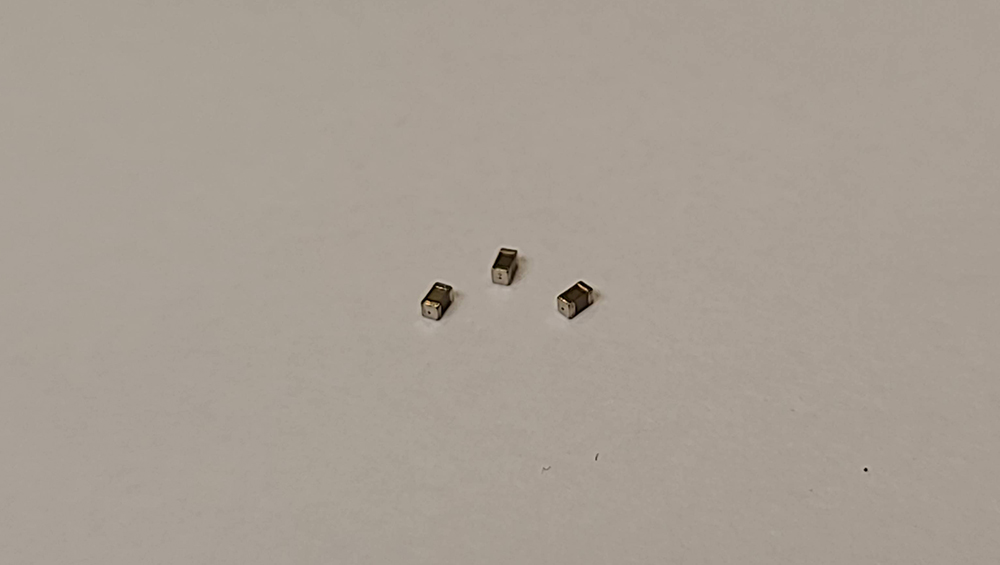

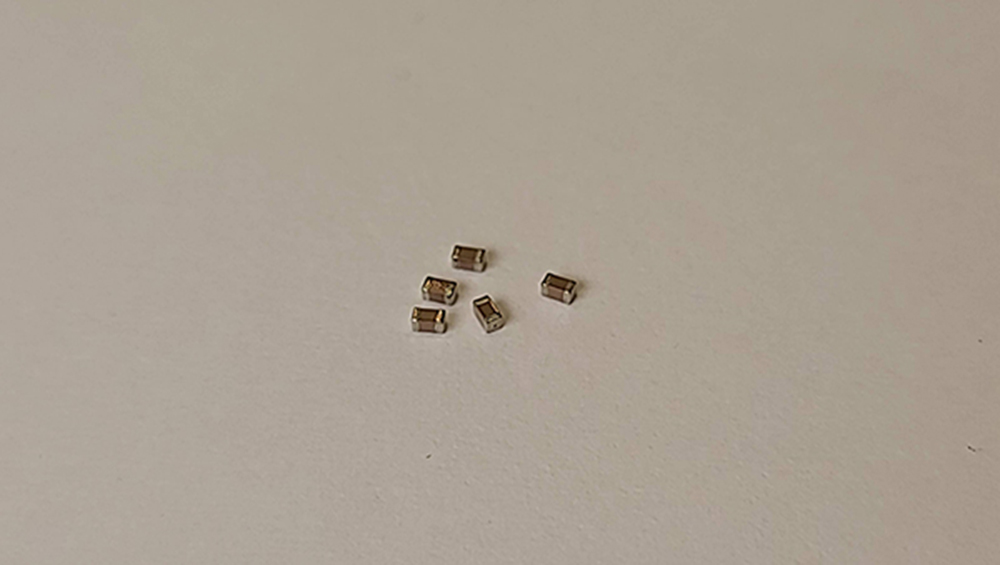

三星电机车载MLCC 0402 inch 1000pF(1nF) 50V新品问世

在0402 inch (1.0×0.5mm)、C0G (-55 to 125℃)、电压50V上实现容值1nF。



▷ 开发出可用于汽车高级驾驶辅助系统(ADAS), 自动驾驶(AD)的温度补偿用(Temperature Compensation) 叠层陶瓷电容CL05C102JB51PN# (以下称为「本产品」)并已量产，可提供样品。



▷ 本产品将0402 inch、C0G、电压50V的line-up从现有的容值220㎊扩大到1000㎊。



▷ 随着汽车的电动化和高性能化，每辆汽车使用的MLCC数量也在急剧增加，因此也持续要求MLCC小型化、稳定性及容值的增加。



▷ 对此，三星电机采用独有的陶瓷及微粒化电极材料和超精密的叠层工艺，在0402 inch (1.0×0.5mm)、电压50V上成功开发出C0G 1000㎊的产品。




Samsung Size Capacitance Rated Voltage * TCC
CL05C102JB51PN#
 0402 inch 1000㎊ 50V C0G

*TCC : Temperature Coefficient of Capacitance

*C0G : -55℃~125℃温度范围内容值变化率 0±30ppm/℃



0402 inch, C0G 50V MLCC Lineup

Size (inch)

 Capacitance (pF)

0402

150

180

220

*270

*330

*390

*470

*560

*680

*820

*1000

*NEW

Characteristics data
