技术 - Article 2024.09.20

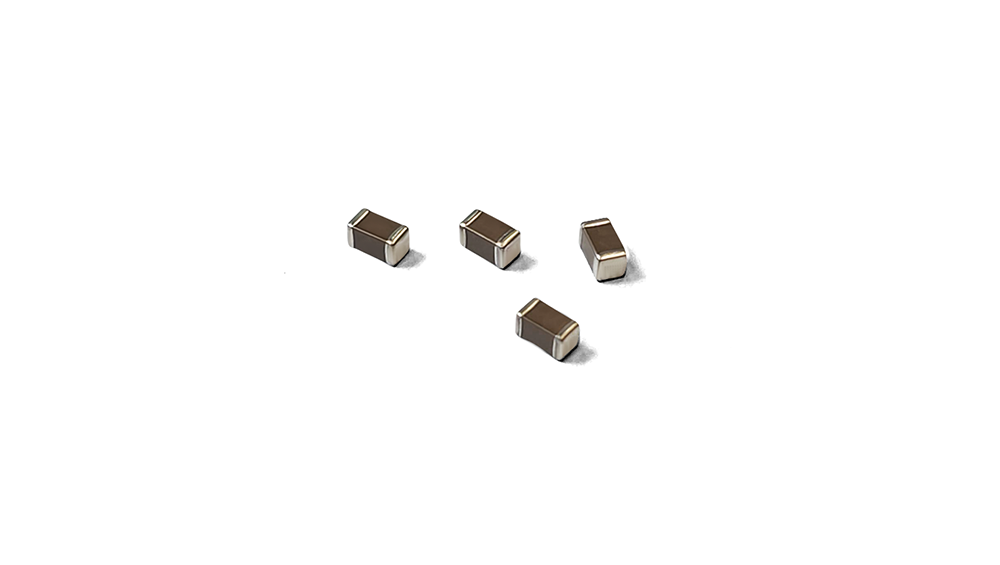

三星电机车载MLCC 0805 inch C0G 22nF~33nF 新品问世

▷ 开发出在0805 inch (2.0×1.25mm) , C0G(-55 to 125℃), 电压50V上实现容值22nF ~ 33nF的CL21C333JBQ1PN#, CL21C223JBQ1PN#并已量产。可提供样品。



▷ 随着车内GPS天线, 智能 (无钥匙) 开门及连接车系统用的模块小型化趋势的扩散, 对MLCC的小型化要求也在持续增加。



▷ 对此三星电机采用独有的陶瓷，微粒化电极材料和超精密叠层工艺，将C0G系列尺寸从现有1206 inch (3.2x1.6mm) 缩小到0805 inch (2.0x1.25mm)，容值从现有的10nF扩大到33nF，满足相应应用的小型化/高容化需求，同时通过47nF/ 56nF的新开发，持续扩大产品Coverage和供应。





Samsung

Size

(inch/mm)

Capacitance

Rated Voltage

TCC

CL21C333JBQ1PN#

0805/2012

33㎋

50Vdc

C0G

CL21C223JBQ1PN#​

22㎋

50Vdc

(C0G : -55℃~125℃ 温度范围内容值变化率 : 0±30ppm/℃)





Lineup of C0G (High-capacitance)

 Size

(inch/mm)

Rated Voltage & Capacitance

Application

Example

 In MP

New

Under Dev.

(2025.Q1)

 50V

50V

25V

 0805/2012

 10㎋

22㎋

33㎋

47㎋*

56㎋*

Communication Module for Network

* CL21C563JAY1PN#(47㎋), CL21C473JAY1PN#(56㎋)

 ​

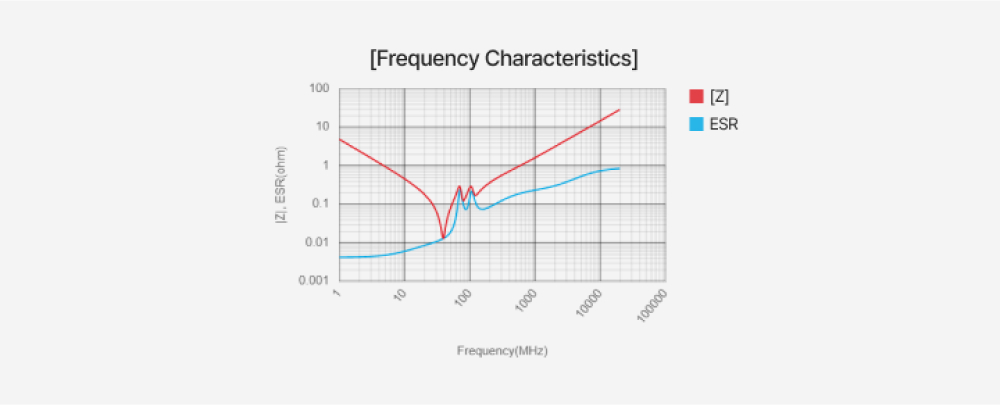

Frequency Characteristics
