技术 - Article 2025.01.15

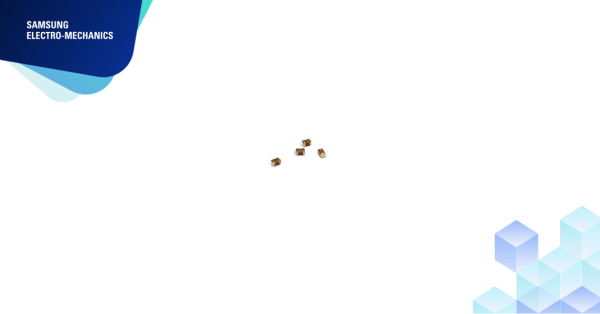

三星电机车规MLCC 0805 inch C0G 2200pF 630V 新品问世

▷ 开发出在0805 inch (2.0×1.25mm) , C0G (-55 to 125℃), 电压630V上实现容值2200pF的CL21C222JHY3PN#并已量产，可提供样品。



▷ 因电动汽车的X-in-1动力总成开发, 车载充电器(OBC), 逆变器, DC-DC转换器, 无线充电(WPT), 电池管理系统(BMS), 压缩机, 泵等车内电力电子系统集成趋势，在动力总成上采用的零部件也逐渐要求高集成，高密度，小尺寸。



▷ 本次新产品保证和原有1206 inch (3.2x1.6mm) 产品相同的容值和电压，同时将尺寸缩小到0805 inch (2.0×1.25mm),  也满足相应Application的小型高容值设计，高温(125℃)及电压稳定的要求。



▷ 三星电机采用独有的陶瓷，微粒化电极材料和超精密叠层工艺，将产品覆盖范围扩大到0805 inch (2.0×1.25mm), 电压630V, 2200pF。





Samsung

Size

(inch/mm)

Capacitance

Rated Voltage

TCC

CL21C222JHY3PN#

0805/2012

2200pF

630Vdc

C0G

(C0G : -55℃~125℃温度范围内容值变化率 : 0±30ppm/℃)



​

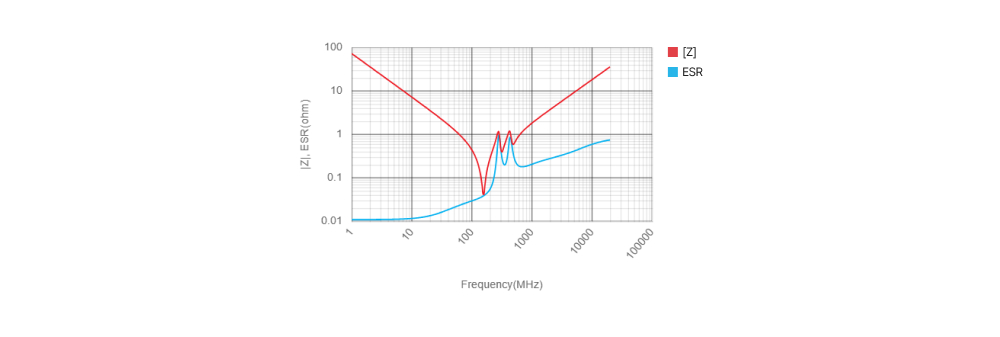

Frequency Characteristics
