技术 - Article 2025.02.05

介绍三星电机工规MLCC 25V 世界首发产品 (0805 inch, X6S, 22uF, 25V)

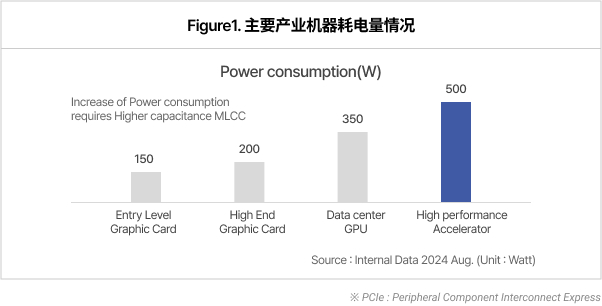

▷ 为了进行大量的数据处理和运算，高速接口的应用正变得必不可少。 需要向AI加速器等以PCIe为基础的高性能设备提供高电力和稳定的电压, 为了应对这种情况，对高温、小尺寸及高容量MLCC的需求正在增加. [Figure1]



1_figure 중문.jpg

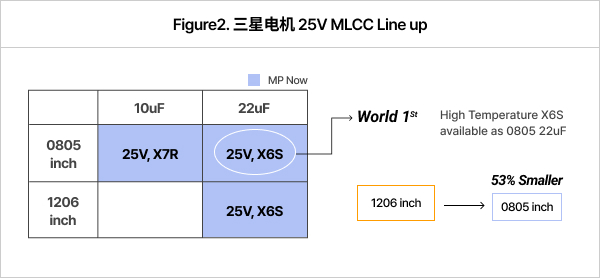

▷ 当功耗增加到约500W左右，高性能AI加速器容易产生纹波电压，需要高容值产品来消除这种电压波动，稳定供电。 另外，随着耗电量的增加，流动的电流也会增多，会产生发热现象，所以需要高温特性。以AI加速器为例，由于使用了标准12V的Power Input，因此需要25V级的MLCC，在此背景下，开发出了容量为22uF, 25V,X6S MLCC产品， 比现有的10uF MLCC容量更大。 [Figure2]



1_figure 중문2.jpg




Samsung

Size (inch)

Capacitance

Rated Voltage

TCC

CL21X226MAYNNW#

0805

22uF

25V

X6S




SAMSUNG 25V MLCC Line-up

Samsung

Size (inch)

Related

Voltage

[Vdc]

TCC

Capacitance

MP

Status

Sample

CL21X226MAYNNW#

0805

25

X6S

22uF

MP

Available

CL31X226KAK6NW#

1206

25

X6S22uF

MP

Available
