Tech - Article 2025.01.15

Application Guide > Automotive > LDC (Low-Voltage DC/DC Converter)

To improve the energy efficiency and driving range of electric vehicles, efforts are being made to downsize and reduce the weight of powertrains. This trend is expanding with the integration of various additional functions.

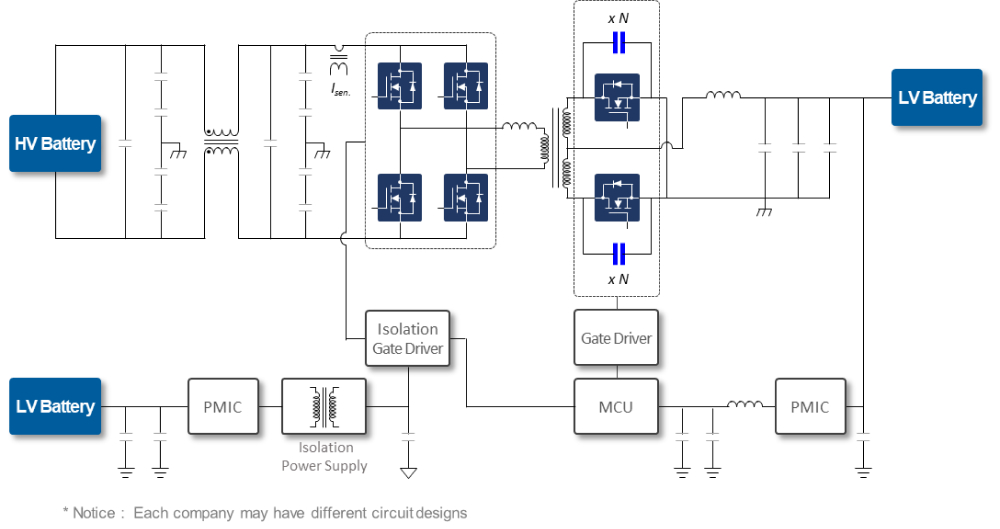

Higher power capacity and stable power supply are essential in such driving systems. The adoption of highly reliable MLCCs in Low-Voltage DC/DC Converters (LDCs) is increasing to suppress high-frequency noise generated during switching.



Samsung Electro-Mechanics offers a lineup of compact, high-capacitance, and high-voltage C0G 0805-inch MLCCs suitable for this application.





MLCC Trend : Miniaturization, Voltage Stability

▷ Small-Sized & High-Capacitance

▷ High Voltage

 → Recommendation :  C0G PN Series ​



Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

0805/2012630

C0G

2200pF

CL21C222JHY3PN#

NEW

Available

0805/2012

630

C0G

1200pF

CL21C122JHY3PN#

NEW

Available

0805/2012

630

C0G

1000pF

CL21C102JHY3PN#

NEW

Available

0805/2012

630

C0G

470pF

CL21C471JHC1PN#

In MP

Available

0805/2012

630

C0G

100pF

CL21C101JHC3PN#

In MP

​Available
