Tantalum

Environmentally Friendly and Highly Reliable
Tantalum Capacitor

Tantalum capacitor is a general type of capacitor that performs electric charge/discharge and removes noise; it is widely
used in devices. It is environmentally friendly as it does not use RoHS regulated materials and has high stability to voltage and
temperature changes. It is also designed in the form of a chip, so it can be applied to surface-mount devices.

  • Eco-Friendly

  • High Reliability

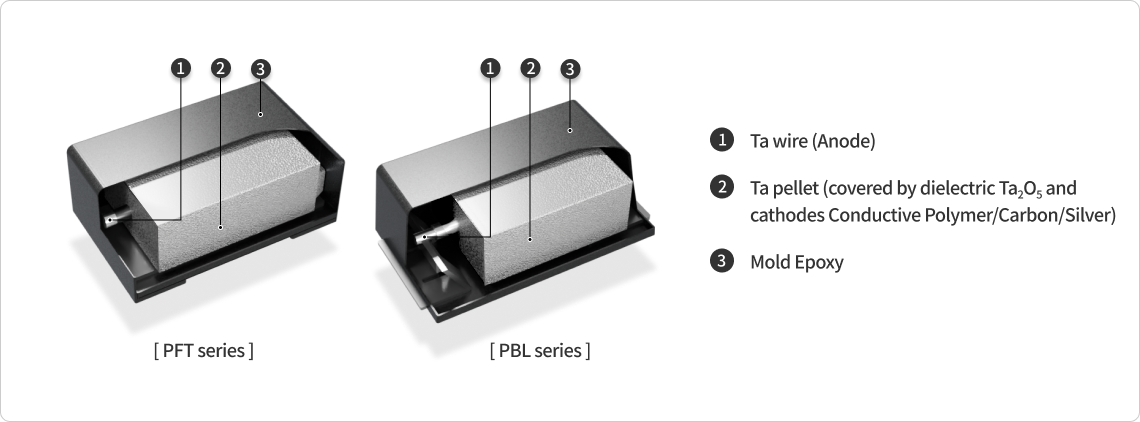

Conductive Polymer Type

Thin and large-capacity products are produced by using tantalum powder with small particle size and product structure with
high volumetric efficiency. In the production process, Samsung Electro-Mechanics’ specialized process technology is used
to lower the interfacial resistance between dissimilar materials.

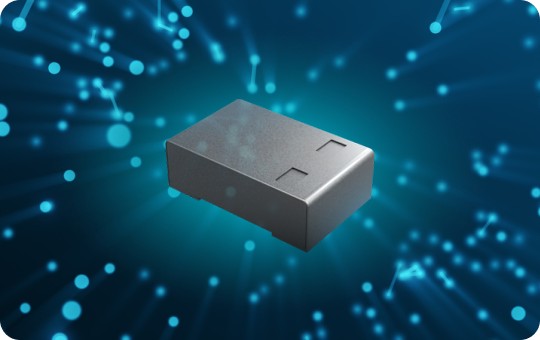

  • Low Profile
    Thin and Large Capacity Products with a Dense,
    Uniform Polymer Layer in Small Pores
  • Lower ESR
    Lower ESR Products Based on Process Technology that
    Lowers Contact Resistance between Dissimilar Materials

Application

FAQ

  • When you go to the Contact us on the main page or the Product page, you can ask questions about technologies and purchases by each region.

  • 1) Searches can be done through Samsung Electro-Mechanics’ website > Product Search.



    2) Product searches can also be done through the Google search window. Input passive component P/N in the search window > Click on the ‘Samsung Electro-Mechanics : Product Information’ from among the search results > Relevant product page opened

  • If the product you want has been discontinued, our website allows you to search for substitute products. For example, if you’re looking for a substitute for CL10A106MP8NNNC with the same size and capacity, you can follow these steps.



    1)First, you need to understand the Part Numbering System rules. If you don’t remember, click the question mark icon on the Product Search menu, and an information window about the Part Numbering System will pop up.

    2)The numeric values included in a Part Number indicate certain attributes.





    Size is indicated by the third and fourth digits in the number. '10' corresponds to 0603(1608), which means 1.6 mm × 0.8 mm. Capacity is indicated by the sixth through eighth digits. '106' means 6th power of 10×10; that is, 10,000,000 pF = 10.㎌.





    With the spec. information you gave, it is difficult to share the exact part.(need size tol and additional info.)

    I recommend you to use our web library.

    If you use our library below, you can select the model you want to check the electrical performance.



    http://weblib.samsungsem.com

  • 1) Go to “Product Search,” and click on the tab for the product you want.

    2) Enter the Part Number (e.g., CLL5Z105MS3NLNH) to begin the search.

    3) When the search results are displayed, check the “Status” section to see if the product is in “Mass Production” or “Under Development.” In most cases, products not included in the search results are “Discontinued Products.” However, there are some products that are not displayed for other reasons. It would be a good idea to contact our staff to see if it has been discontinued.



    Request : http://www.samsungsem.com/global/support/contact-us/inquiry.do



  • The polymer tantal capacitor does not have DC bias characteristics similar to the MLCC. That is, even if DC voltage is applied, capacitance does not decrease.
