Tech - Article 2024.07.22

Application Guide > Automotive > LED Lighting System

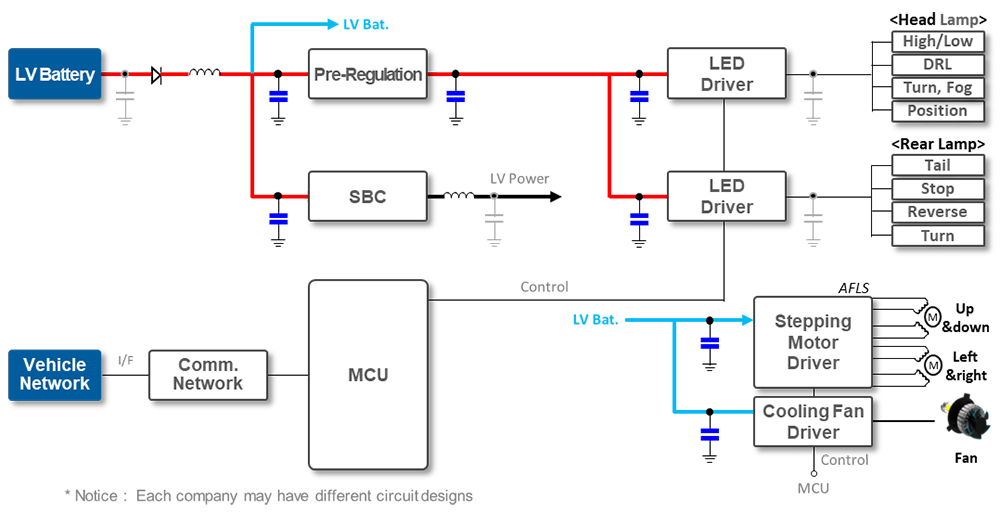

The automotive lighting field is experiencing remarkable progress as LED lamps are increasingly being integrated into compact vehicles, in line with the industry's move towards environmentally friendly and intelligent vehicle technologies. The smartification of headlamps and the evolution of rear lamp design have led to an increase in the number of LED channels, resulting in higher power consumption in vehicles. As a result, the importance of maintaining the effective capacitance of multilayer ceramic capacitors (MLCCs) in high temperature environments (up to 125°C) has become paramount.



In response to this demand, Samsung Electro-Mechanics continues to expand and supply its range of high capacitance MLCC products. This expansion includes MLCCs with X7R characteristics and rated voltages of 35V and above.



MLCC Trend : High Capacitance

▷ Higher effective capacitance compared to X7S

▷ High Reliability

 → Recommendation : X7R PN Series



Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Remarks

1210/3225

35Vdc

X7R

22㎌

CL32B226KLV6PJ#

NEW

Soft term.

1210/3225

35Vdc

X7R

22㎌

CL32B226KLV6PN#

NEW



1206/3216

35Vdc

X7R

10㎌

CL31B106KLK6PJ#

In MP

Soft term.

1206/3216

35Vdc

X7R

10㎌

CL31B106KLK6PN#

In MP



0805/2012

35Vdc

X7R

4.7㎌

CL21B475KLB6PJ#

In MP

Soft term.

0805/2012

35Vdc

X7R

4.7㎌

CL21B475KLB6PN#

In MP



0805/2012

35Vdc

X7R

2.2㎌

CL21B225KLYVPJ#

In MP

Soft term.

0805/2012

35Vdc

X7R

2.2㎌

CL21B225KLYVPN#

In MP



0603/1608

35Vdc

X7R

1.0㎌

CL10B105KL9VPJ#

In MP

Soft term.

0603/1608

35Vdc

X7R

1.0㎌

CL10B105KL9VPN#

In MP
