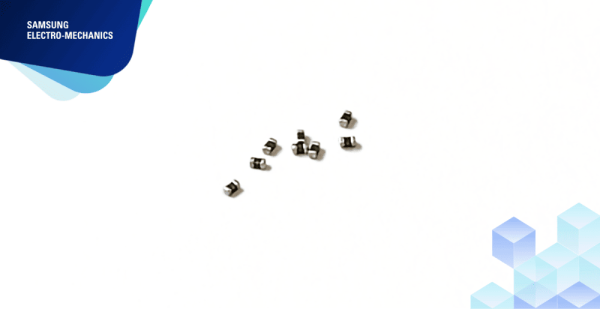

▷ Samsung Electro-Mechanics has developed and commenced mass production of three models, including the CL03C221JB31PN#, which features a size of 0201 inch (0.6 × 0.3mm), a C0G (suitable for temperatures ranging from -55 to 125°C), and a rated voltage of 50V, providing capacitance values from 100 to 220 pF. Samples are also available upon request.
▷ As the trends of high integration, high density, and miniaturization gain momentum in ADAS, IVI, communication modules (such as Wi-Fi, Bluetooth, 5G, and NADs), and SiP modules, there is a corresponding rise in the demand for smaller multilayer ceramic capacitors.
▷ In response to this demand, Samsung Electro-Mechanics has utilized its proprietary techniques for micronizing ceramic and electrode materials, along with advanced precision stacking methods, to reduce the size of C0G capacitors from the conventional 0402 inch (1.0 × 0.5mm) to 0201 inch (0.6 × 0.3mm). This innovation allows for capacitance values of up to 220 pF, thereby meeting the requirements for miniaturization and higher capacitance in relevant applications. Additionally, Samsung Electro-Mechanics plans to further expand its product range to include capacitors with values between 1 and 100 pF through ongoing development efforts.
(C0G: Capacitance change rate in the temperature range of -55°C to 125°C : 0±30ppm/℃)
Lineup of Small-Sized & High-Capacitance C0G
Size (inch/mm) | Rated Voltage & Capacitance | Application Example |
New | Under Dev. (2025) |
50Vdc | 50Vdc |
0201/0603 | 220㎊ | 150㎊
| 100㎊
| 33㎊* | 1㎊* | Communication Module for Network |
* CL03C330JB31PN# (33㎊), CL03C010BB31PN# (1㎊))

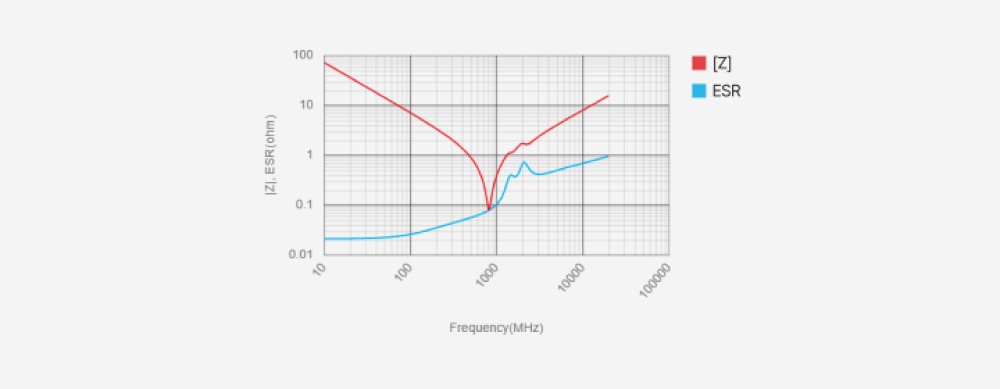

Frequency Characteristics
