2025.02.19

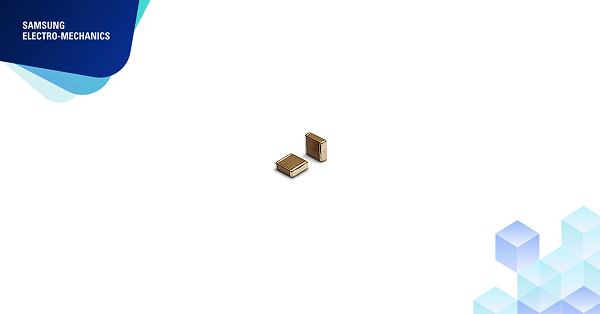

サムスン電機、車載用MLCC 5750mm X7R 1㎌ 250V 発売

▷ 5.7×5.0㎜(2220inch)サイズ、X7R(-55～125℃)、定格電圧250Vで静電容量1µFを満たす先端製品「CL55B105KEU6PN#」を開発し、量産を開始しました。



▷ 当製品は技術的優位性と高い安定性を兼ね備え、サンプル提供により多様な顧客のニーズに対応していく計画です。



▷ ボディコントローラー、EPS(Electric Power Steering)、OBC(On-Board Charger)などの高電力・高電圧および厳しい環境での性能安定化を実現するため、MLCC(積層セラミックコンデンサ)における高信頼性化への要求が増加しています。



▷ サムスン電機は独自のセラミック及び電極材料の微粒化技術と超精密積層技術を採用し、高電圧・大容量製品のカバレッジ(適用範囲)を拡大しています。そして、車載用部品の高信頼性トレンドに対応するため、今後も高信頼性製品の開発を拡充していく計画です。




Samsung

Size

(mm/inch)

Capacitance

Rated Voltage

TCC

CL55B105KEU6PN#

5750/2220

1㎌

250Vdc

X7R

(X7R : -55℃~125℃ における容量変化率 : ±15%)

​

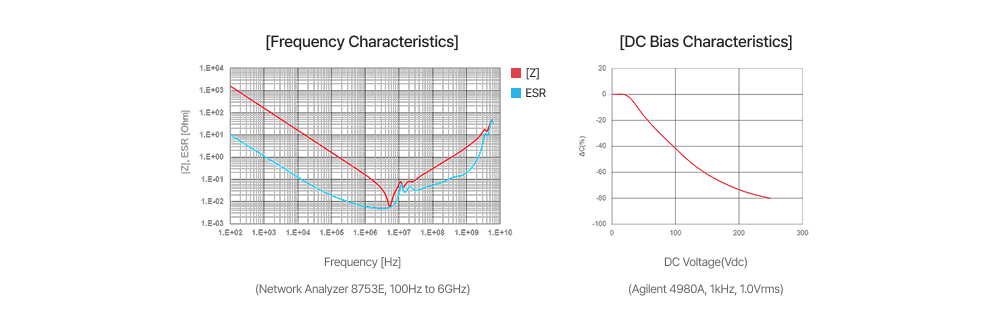

Characteristics Data
