Tantalum

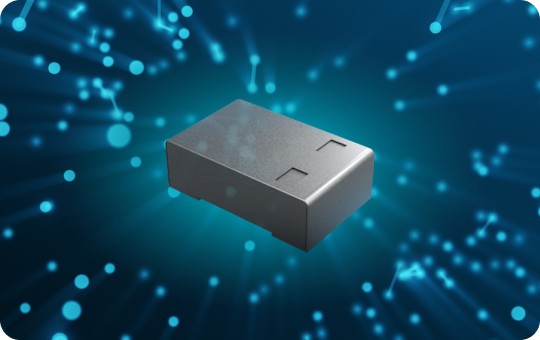

環境にやさしく、安定性の優れたTantalum Capacitor

Tantalum Capacitorは、電荷を充電・放電しノイズを除去する一般的なタイプのCapacitorとして、電子機器に幅広く使
われています。特徴としては、RoHS規制物質を使わないため環境にやさしく、電圧と温度変化に高い安定性を有します。また、
チップタイプに設計されており、表面実装機器に適用できます。

  • 環境にやさしい

  • 高い安定性

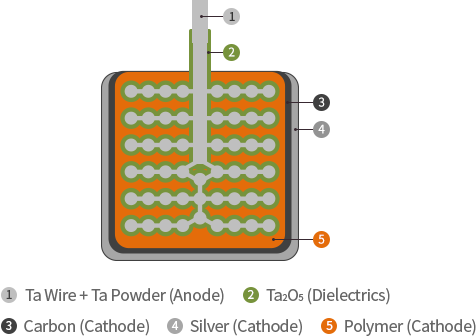

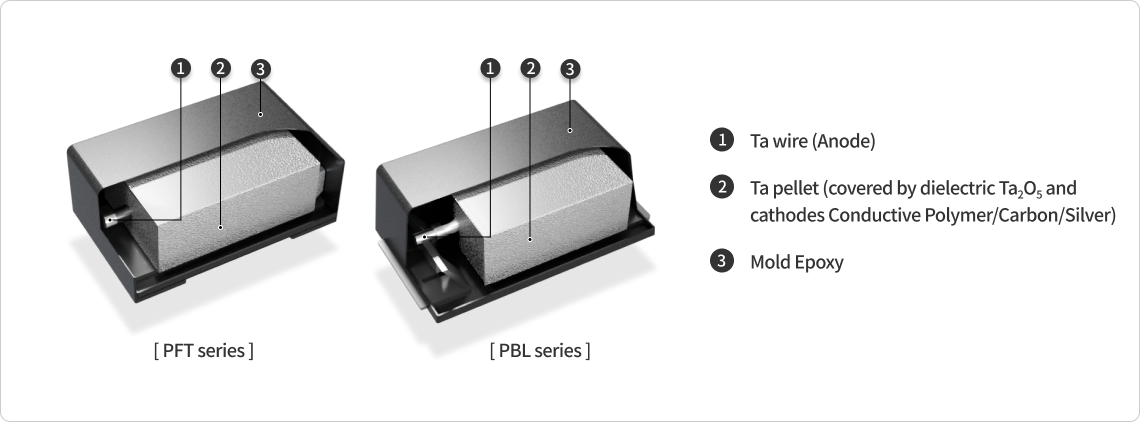

Conductive Polymer Type

粒子のサイズが小さいTantalum粉末の適用、及び高い体積効率を有する製品構造により、薄型・大容量の製品を生産します。
生産過程でサムスン電機ならではの特化した工程技術を活用し、異種材料同士の界面抵抗を低減させているのが特徴です。

  • Low Profile
    小さい機工の中に緻密で均一な高分子層を形成した
    薄型・大容量製品
  • Lower ESR
    異種材料同士の接触抵抗を低減させる工程技術ベースの
    Lower ESR製品

適用分野

FAQ

  • When you go to the Contact us on the main page or the Product page, you can ask questions about technologies and purchases by each region.

  • 1) Searches can be done through Samsung Electro-Mechanics’ website > Product Search.

    2) Product searches can also be done through the Google search window. Input passive component P/N in the search window > Click on the ‘Samsung Electro-Mechanics : Product Information’ from among the search results > Relevant product page opened

  • If the product you want has been discontinued, our website allows you to search for substitute products. For example, if you’re looking for a substitute for CL10A106MP8NNNC with the same size and capacity, you can follow these steps.

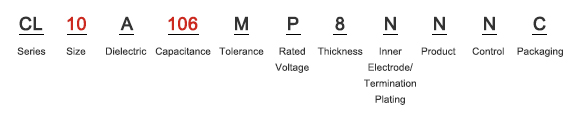

    1)First, you need to understand the Part Numbering System rules. If you don’t remember, click the question mark icon on the Product Search menu, and an information window about the Part Numbering System will pop up.

    2)The numeric values included in a Part Number indicate certain attributes.







    Size is indicated by the third and fourth digits in the number. '10' corresponds to 0603(1608), which means 1.6 mm × 0.8 mm. Capacity is indicated by the sixth through eighth digits. '106' means 6th power of 10×10; that is, 10,000,000 pF = 10.㎌.





    With the spec. information you gave, it is difficult to share the exact part.(need size tol and additional info.)

    I recommend you to use our web library.

    If you use our library below, you can select the model you want to check the electrical performance.



    http://weblib.samsungsem.com

  • 1) Go to “Product Search,” and click on the tab for the product you want.

    2) Enter the Part Number (e.g., CLL5Z105MS3NLNH) to begin the search.

    3) When the search results are displayed, check the “Status” section to see if the product is in “Mass Production” or “Under Development.” In most cases, products not included in the search results are “Discontinued Products.” However, there are some products that are not displayed for other reasons. It would be a good idea to contact our staff to see if it has been discontinued.



    Request : http://www.samsungsem.com/global/support/contact-us/inquiry.do

  • The polymer tantal capacitor does not have DC bias characteristics similar to the MLCC. That is, even if DC voltage is applied, capacitance does not decrease.
