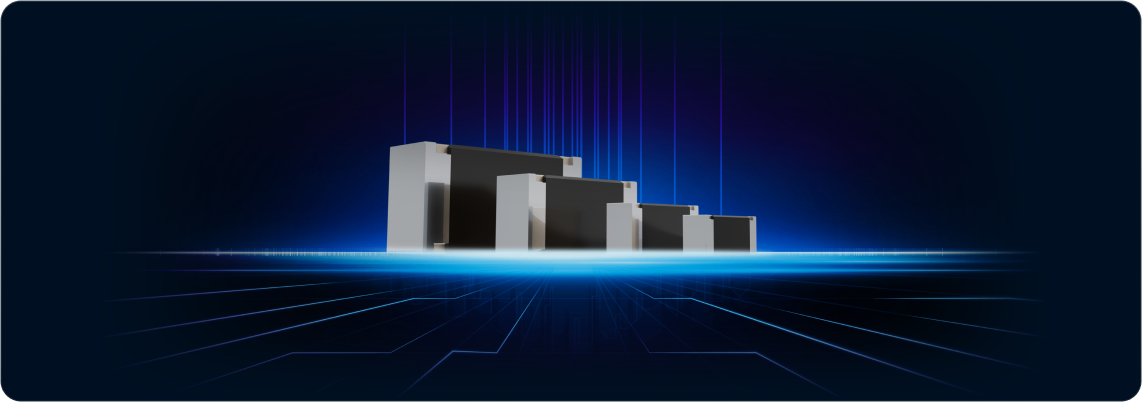

- Wide Selection of Size & Wide Resistance Range
- 多様なサイズと広い範囲の抵抗を実現できる製品

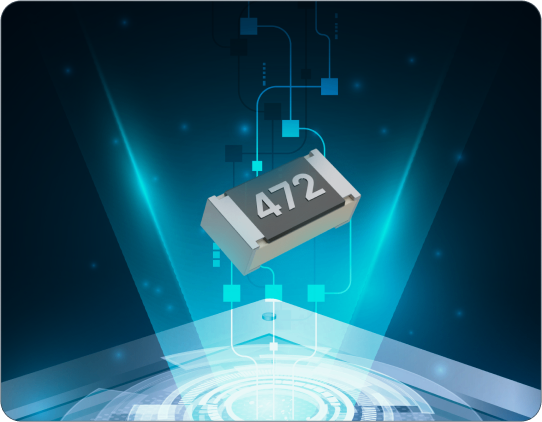

- Excellent Characteristics
- 電気的、機械的特性の優れた製品

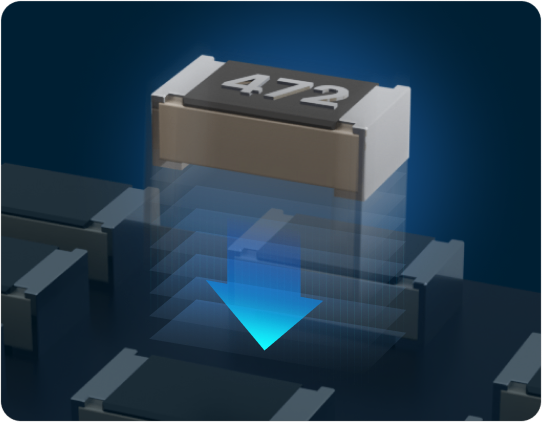

- High Speed Automatic Chip
Placement on PCBs - PCBにチップを高速で実装可能
Automotive General
| Type | Size Inch/(㎜) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RA0603 | 0201(0603) |  |
1/20 | ±1% ±2% ±5% |
1~10MΩ | -55~125℃ |
| RA1005 | 0402(1005) | 1/16 | ±0.5% ±1% ±2% ±5% |
-55~155℃ | ||
| RA1608 | 0603(1608) |  |
1/10 | |||
| RA2012 | 0805(2012) | 1/8 | ||||
| RA3216 | 1206(3216) | 1/4 |
Automotive High Power
| Type | Size Inch/(㎜) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RAW2012 | 0805(2012) |  |
1/2 | ±0.5% ±1% ±2% ±5% |
1~10MΩ | -55~155℃ |
Automotive CSR (Thick Film)
| Series | Type | Size Inch/(㎜) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation 0.1Temperature Range [℃] |
|---|---|---|---|---|---|---|---|
| RAU | RAU1005 | 0402(1005) |  |
1/8 | ±1% | 0.020~0.100Ω | -55~155℃ |
| RAU1608 | 0603(1608) | 1/4 | ±1% | 0.010~0.100Ω | |||
| RAU2012 | 0805(2012) | 1/3 | ±1% | ||||
| RAU3216 | 1206(3216) | 1/2 | ±1% | ||||
| RAU3225 | 1210(3225) | 2/3 | ±1% | ||||
| RAU5025 | 2010(5025) | 3/4 | ±1% | ||||
| RAU6432 | 2512(6432) | 1 | ±1% | ||||
| RAUT | RAUT1005 | 0402(1005) |  |
1/8 | ±1% | 0.100~0.976Ω | -55~155℃ |
| RAUT1608 | 0603(1608) | 1/4 | ±1% | ||||
| RAUT2012 | 0805(2012) | 1/3 | ±1% | ||||
| RAUT3216 | 1206(3216) | 1/2 | ±1% | ||||
| RAUT3225 | 1210(3225) | 2/3 | ±1% | ||||
| RAUT5025 | 2010(5025) | 3/4 | ±1% | ||||
| RAUT6432 | 2512(6432) | 1 | ±1% |
*Under development
Automotive CSR (Metal)
| Series | Type | Size Inch/(㎜) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|---|
| RAC | *RAC6432 (Under development) | 2512(6432) (Under development) |  |
2, 3 (Under development) | ±0.5%, ±1% (Under development) | 0.0005~0.005Ω (Under development) | -65~170℃ (Under development) |
| RAP | *RAP3216 (Under development) | 1206(3216) (Under development) |  |
1 (Under development) | ±0.5%, ±1% (Under development) | 0.001~0.005Ω (Under development) | -55~170℃ (Under development) |
| *RAP2012 (Under development) | 0805(2012) (Under development) | 0.5, 1 (Under development) | ±0.5%, ±1% (Under development) | 0.001~0.005Ω (Under development) | -55~170℃ (Under development) | ||
| *RAP1220 (Under development) | 0508(1220) (Under development) | 1 (Under development) | ±0.5%, ±1% (Under development) | 0.001~0.002Ω (Under development) | -55~170℃ (Under development) | ||
| *RAP1608 (Under development) | 0603(1608) (Under development) | 0.5, 1 (Under development) | ±0.5%, ±1% (Under development) | 0.001~0.005Ω (Under development) | -55~155℃ (Under development) | ||
| RAE | *RAE6432 (Under development) | 2512(6432) (Under development) |  |
Ambient: 3~4W Terminal: 5~6W (Under development) |
±0.5%, ±1% (Under development) | 0.0003~0.0033Ω (Under development) | -65~170℃ (Under development) |
| RAE7956 | 3222(7956) | Ambient: 6~8W Terminal: 10~12W |
±0.5%, ±1% | 0.0002, 0.00027Ω | -65~175℃ | ||
| *RAE1050 (Under development) | 3921(10050) (Under development) | Ambient: 3~8W Terminal: 5~10W (Under development) |
±0.5%, ±1% (Under development) | 0.0002~0.003Ω (Under development) | -65~170℃ (Under development) |
*Under development
適用分野
-
自動車用ECU
-
ADAS
-
電気装置
