Chip Resistor

Current Sensing
Resistor

Product Search Component Library Buy Now

電流センシングに使う超低抵抗Resistor

電流センシングに使うThick Film工法の超低抵抗製品で、抵抗誤差を小さくするために抵抗体が下面に位置するInverted実装
構造になっています。高い定格電力と低い温度変化の特性を有する製品です。

Product Search

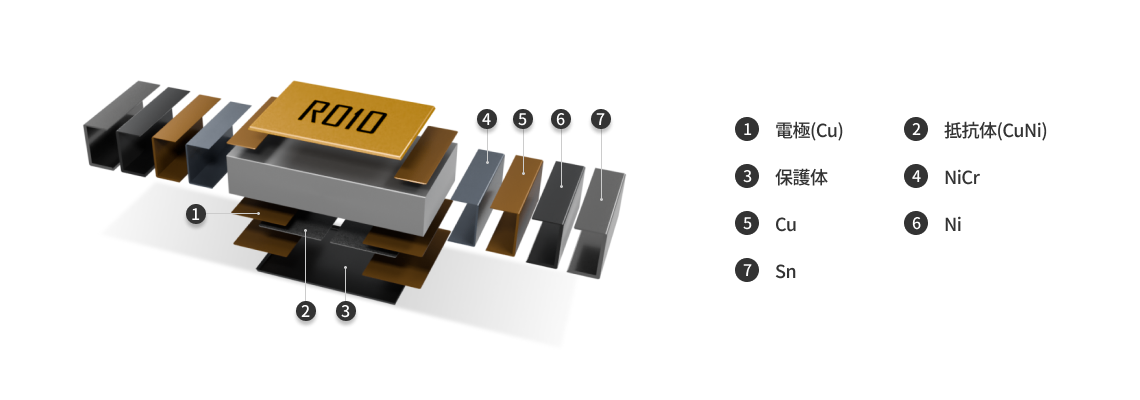

Thick Film工法
High Power、Low TCR特性の多様なLow Ohm(CSR) Series
Resistance誤差減の実装構造
抵抗体下面構造のInverted実装設計

CSR (Thick Film)

CSR (Thick Film) Lineup - Series, Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Series Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 Resistance
Range		 Operation
0.1Temperature
Range [℃]
RUK RUK1608 0603(1608) 1/2 ±1% 0.010~0.030Ω -55~155℃
RUK2012 0805(2012) 1/2 ±1% 0.007~0.030Ω
RUK3216 1206(3216) 1 ±1%
RUK6432 2512(6432) 2 ±1%
RU RU1005 0402(1005) 1/8 ±1% 0.020~0.100Ω -55~155℃
RU1608 0603(1608) 1/4 ±1% 0.010~0.100Ω
RU2012 0805(2012) 1/3 ±1%
RU3216 1206(3216) 1/2 ±1%
RU3225 1210(3225) 2/3 ±1%
RU5025 2010(5025) 3/4 ±1%
RU6432 2512(6432) 1 ±1%
RUT RUT1005 0402(1005) 1/8 ±1% 0.100~0.976Ω -55~155℃
RUT1608 0603(1608) 1/4 ±1%
RUT2012 0805(2012) 1/3 ±1%
RUT3216 1206(3216) 1/2 ±1%
RUT3225 1210(3225) 2/3 ±1%
RUT5025 2010(5025) 3/4 ±1%
RUT6432 2512(6432) 1 ±1%
RJ *RJ0816 (Under development) 0306(0816) (Under development) 1/2 (Under development) ±1% (Under development) 0.005~0.020Ω -55~155℃
RJ1220 0508(1220) 1 ±1%
RJ1632 0612(1632) 1 ±1%
RJ2037 0815(2037) 1 ±1%
RJ3264 1225(3264) 2 ±1%

*Under development

Automotive CSR (Thick Film)

Automotive CSR (Thick Film) Lineup - Series, Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Series Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 Resistance
Range		 Operation
0.1Temperature
Range [℃]
RAU RAU1005 0402(1005) 1/8 ±1% 0.020~0.100Ω -55~155℃
RAU1608 0603(1608) 1/4 ±1% 0.010~0.100Ω
RAU2012 0805(2012) 1/3 ±1%
RAU3216 1206(3216) 1/2 ±1%
RAU3225 1210(3225) 2/3 ±1%
RAU5025 2010(5025) 3/4 ±1%
RAU6432 2512(6432) 1 ±1%
RAUT RAUT1005 0402(1005) 1/8 ±1% 0.100~0.976Ω -55~155℃
RAUT1608 0603(1608) 1/4 ±1%
RAUT2012 0805(2012) 1/3 ±1%
RAUT3216 1206(3216) 1/2 ±1%
RAUT3225 1210(3225) 2/3 ±1%
RAUT5025 2010(5025) 3/4 ±1%
RAUT6432 2512(6432) 1 ±1%

*Under development

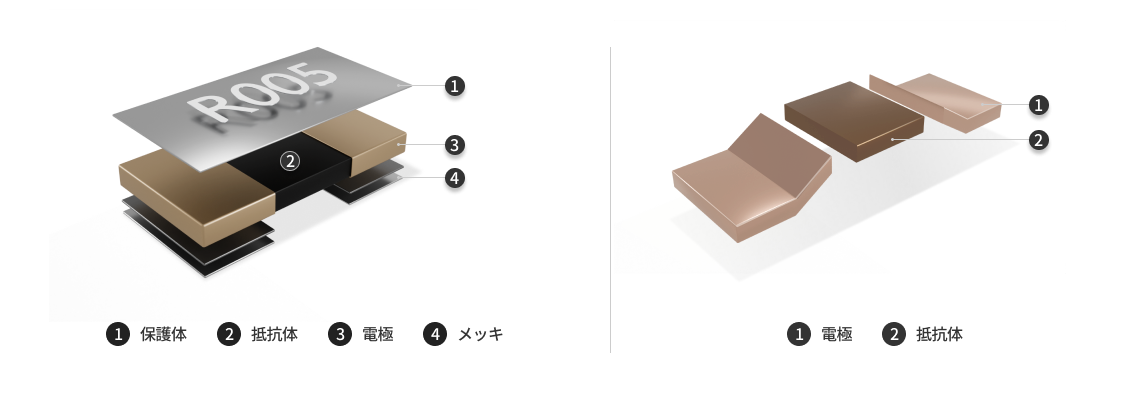

電流センシングに使う超低抵抗Resistor

Power管理のための主要素子で、電流センシングに使われる超低抵抗製品です。抵抗誤差を小さくするための電極構造を
採用しています。大電流Metal Plate TypeのShunt抵抗器で、高い定格電力と低い温度変化の特性を有する製品です。

Product Search
  • 優れた熱伝導度
    優れた放熱効果により、
    動作時に低い素体温度を
    維持
  • 優れた機械的強度
    大型PCB Warpageに対応
    可能
  • 優れたT.C.R.
    精密測定、Motorの変位
    センサー適用可能

CSR (Metal)

CSR (Metal) Lineup - Series, Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Series Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RLC RLC6432 2512(6432) 2, 3 ±0.5%, ±1% 0.0005~0.005Ω -65~170℃
RLP *RLP3216 (Under development) 1206(3216) (Under development) 1 (Under development) ±0.5%, ±1% (Under development) 0.001~0.005Ω (Under development) -55~170℃ (Under development)
RLP2012 0805(2012) 0.5, 1 ±0.5%, ±1% 0.001~0.005Ω -55~170℃
RLP1220 0508(1220) 1 ±0.5%, ±1% 0.001~0.002Ω -55~170℃
RLP1608 0603(1608) 0.5, 1 ±0.5%, ±1% 0.001~0.005Ω -55~155℃
RLE RLE6432 2512(6432) Ambient: 3~4W
Terminal: 5~6W		 ±0.5%, ±1% 0.0003~0.0033Ω -65~170℃
RLE7956 3222(7956) Ambient: 6~8W
Terminal: 10~12W		 ±0.5%, ±1% 0.0002, 0.00027Ω -65~175℃
RLE1050 3921(10050) Ambient: 3~8W
Terminal: 5~10W		 ±0.5%, ±1% 0.0002~0.003Ω -65~170℃

*Under development

Automotive CSR (Metal)

Automotive CSR (Metal) Lineup - Series, Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Series Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RAC *RAC6432 (Under development) 2512(6432) (Under development) 2, 3 (Under development) ±0.5%, ±1% (Under development) 0.0005~0.005Ω (Under development) -65~170℃ (Under development)
RAP *RAP3216 (Under development) 1206(3216) (Under development) 1(Under development) ±0.5%, ±1% (Under development) 0.001~0.005Ω (Under development) -55~170℃ (Under development)
*RAP2012 (Under development) 0805(2012) (Under development) 0.5, 1 (Under development) ±0.5%, ±1% (Under development) 0.001~0.005Ω (Under development) -55~170℃ (Under development)
*RAP1220 (Under development) 0508(1220) (Under development) 1 (Under development) ±0.5%, ±1% (Under development) 0.001~0.002Ω (Under development) -55~170℃ (Under development)
*RAP1608 (Under development) 0603(1608) (Under development) 0.5, 1 (Under development) ±0.5%, ±1% (Under development) 0.001~0.005Ω (Under development) -55~155℃ (Under development)
RAE *RAE6432 (Under development) 2512(6432) (Under development) Ambient: 3~4W
Terminal: 5~6W (Under development)		 ±0.5%, ±1% (Under development) 0.0003~0.0033Ω (Under development) -65~170℃ (Under development)
RAE7956 3222(7956) Ambient: 6~8W
Terminal: 10~12W		 ±0.5%, ±1% 0.0002, 0.00027Ω -65~175℃
*RAE1050 (Under development) 3921(10050) (Under development) Ambient: 3~8W
Terminal: 5~10W (Under development)		 ±0.5%, ±1% (Under development) 0.0002~0.003Ω (Under development) -65~170℃ (Under development)

*Under development

適用分野

  • Display

  • Mobile Phone

  • CPU

  • DC-DC Converter用
    電流センシング

  • インバーター電源供給装置

  • BMS (Battery Management System)

Lineup

製品検索
