Resistor with Sulfur Resistance Properties
A chip resistor mainly uses silver (Ag) as its electrode material, but silver is easily corroded by sulfur (S) and gradually
turns into silver sulfide (Ag₂S). Silver sulfide is an insulator and prevents current flow between both terminals of a resistor.
Therefore, it is essential for electronic devices used in harsh environments to use resistors with electrode materials

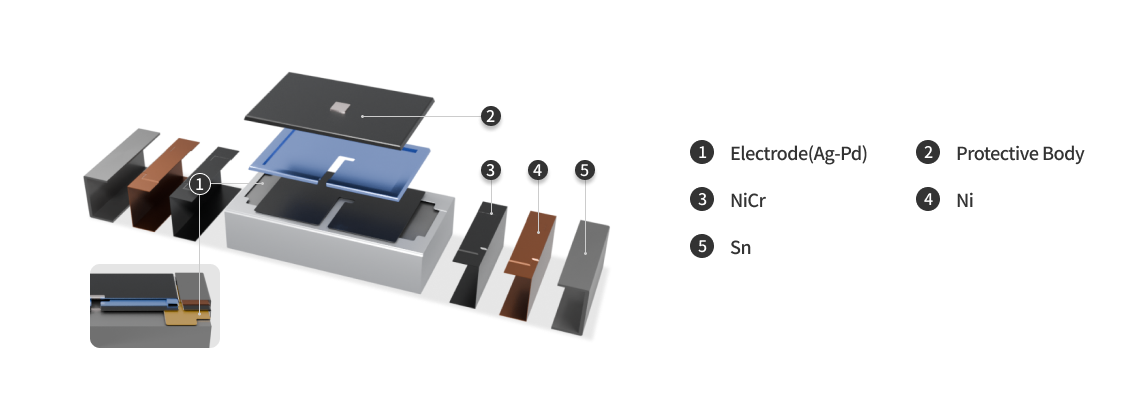

that have sulfur resistance. Samsung Electro-Mechanics has developed materials that are resistant to sulfur corrosion
with its unique materials and design technology and supplies chip resistors with sulfur-resistant properties.
- Achievement of a Higher Level of Sulfur Resistance
than The International Standard ASTM B 809-95 - Unique Material Technology Enables Performance under the Highest Level of Corrosive Conditions (105℃/720hr)

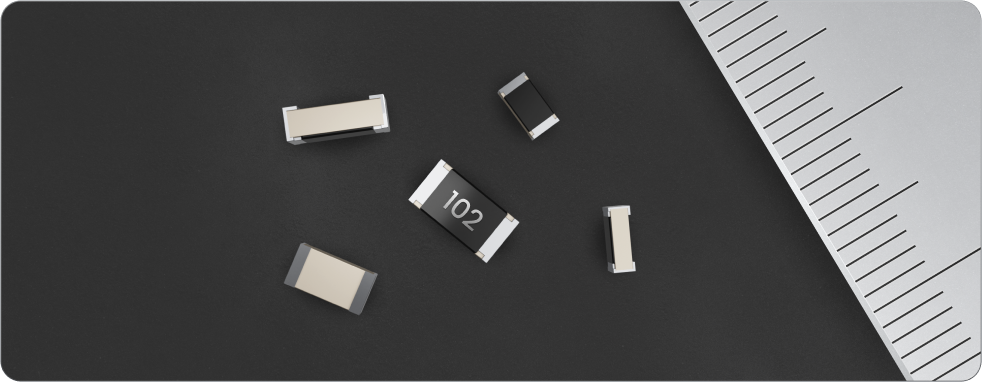

- Lineup of Different Sizes
- Lineup Includes a Variety of Sizes from Small to Large (0603 to 6432 mm), as well as Array Resistors.
Anti-Sulfur General
| Type | Size Inch/(㎜) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RCS0603 | 0201(0603) |  |
1/20 | ±1% ±2% ±5% |
1~10MΩ | -55~125℃ |
| RCS1005 | 0402(1005) | 1/16 | ±0.5% ±1% ±2% ±5% |
-55~155℃ | ||
| RCS1608 | 0603(1608) |  |
1/10 | |||
| RCS2012 | 0805(2012) | 1/8 | ||||
| RCS3216 | 1206(3216) | 1/4 | ||||
| RCS3225 | 1210(3225) |  |
1/3 | |||
| RCS5025 | 2010(5025) | 2/3 | ||||
| RCS6432 | 2512(6432) | 1 |
Anti-Sulfur Array
| Type | Size Inch/(㎜) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RPS102P | 0404(1010) |  |
1/16 | ±5% | 1~1MΩ | -55~155℃ |
| RPS104P | 0804(2010) |  |
||||
| RFS062P | 0302(1010) |  |
1/32 | ±5% | 10~1MΩ | -55~125℃ |
| RFS064P | 0502(2010) |  |
||||
| RMS102P | 0404(1010) |  |
1/16 | ±5% | 1~1MΩ | -55~155℃ |
| RMS104P | 0804(2010) |  |
Lineup
-
- General Resistor
- Products capable of precision resistance
-
- Array Resistor
- Products with reduced mounting area
-
- Current Sensing Resistor
- Ultra-low resistance products
used for current sensing
-
- Anti Sulfur Resistor
- Products with sulfur-resistant properties
-
- High Power Resistor
- Products for high power applications
-
- Total PB free Resistor
- Eco-friendly products
-
- Thin Film Resistor
- Products made of thin metal
-
- Automotive Resistor
- Products for automotive use
