Resistor Capable of Precision Resistance
The product regulates current and drops voltage in an electric circuit through the properties that interrupt the flow of current.
It realizes the precision resistance required in the circuit in the form of an SMD-capable chip by printing resistors, electrodes,
and protective materials on a ceramic body.

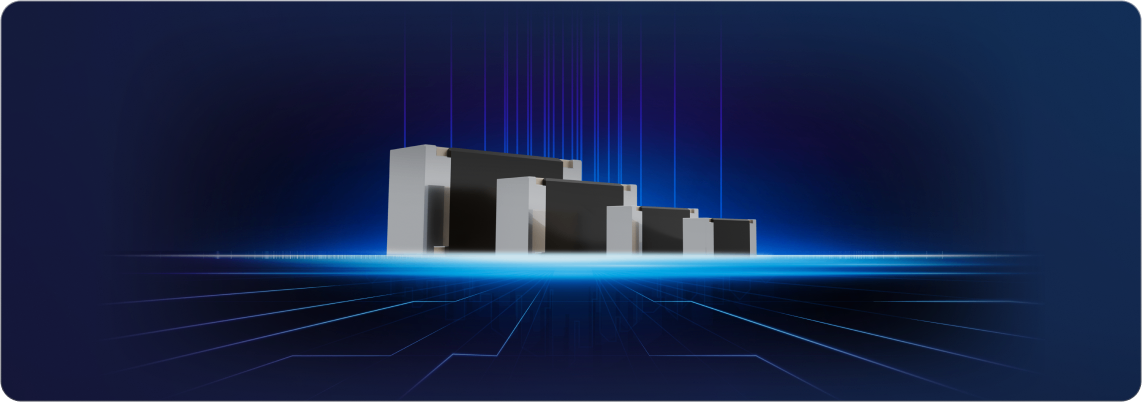

- Wide Selection of Size & Wide Resistance Range
- Product that can be Implemented in a Variety of Sizes and Over a Wide Range of Resistances

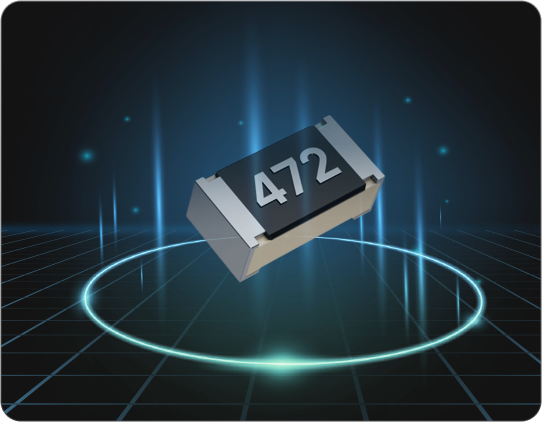

- Excellent Characteristics
- Product with Excellent Electrical and Mechanical Properties

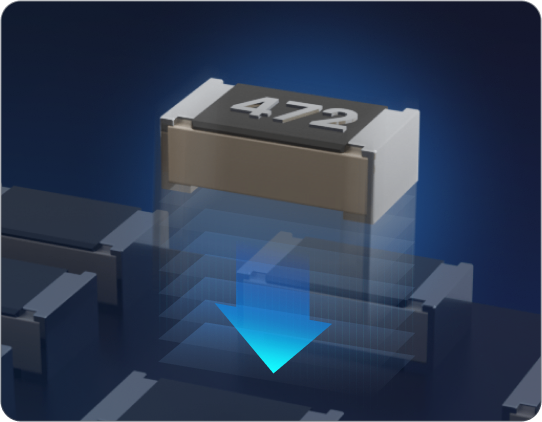

- High Speed Automatic Chip
Placement on PCBs - Product that Enables High-Speed Mounting of Chips on PCBs
General
| Type | Size Inch/(mm) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RC0402 | 01005(0402) |  |
1/32 | ±1% ±2% ±5% |
1~1MΩ | -55~125℃ |
| RC0603 | 0201(0603) | 1/20 | 1~10MΩ | |||
| RC1005 | 0402(1005) | 1/16 | ±0.5% ±1% ±2% ±5% |
-55~155℃ | ||
| RC1608 | 0603(1608) |  |
1/10 | |||
| RC2012 | 0805(2012) | 1/8 | ||||
| RC3216 | 1206(3216) | 1/4 | ||||
| RC3225 | 1210(3225) | 1/3 | ||||
| RC5025 | 2010(5025) | 2/3 | ||||
| RC6432 | 2512(6432) | 1 |
Reverse
| Type | Size Inch/(mm) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RCB0603 | 0201(0603) |  |
1/20 | ±1% ±2% ±5% |
1~10MΩ | -55~125℃ |
| RCB1005 | 0402(1005) | 1/16 | -55~155℃ |
Automotive General
| Type | Size Inch/(mm) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RA0603 | 0201(0603) | |
1/20 | ±1% ±2% ±5% |
1~10MΩ | -55~125℃ |
| RA1005 | 0402(1005) | 1/16 | ±0.5% ±1% ±2% ±5% |
-55~155℃ | ||
| RA1608 | 0603(1608) | |
1/10 | |||
| RA2012 | 0805(2012) | 1/8 | ||||
| RA3216 | 1206(3216) | 1/4 |
Application
-
Mobile Phone
-
Computer
-
Digital TV
-
Camera
-
LCD
-
Memory Module
-
Game Console
-
DC-DC Converter
Lineup
-
- General Resistor
- Products capable of precision resistance
-
- Array Resistor
- Products with reduced mounting area
-
- Current Sensing Resistor
- Ultra-low resistance products
used for current sensing
-
- Anti Sulfur Resistor
- Products with sulfur-resistant properties
-
- High Power Resistor
- Products for high power applications
-
- Total PB free Resistor
- Eco-friendly products
-
- Thin Film Resistor
- Products made of thin metal
-
- Automotive Resistor
- Products for automotive use
