Chip Resistor

Thin Film Resistor

Product Search Component Library Buy Now

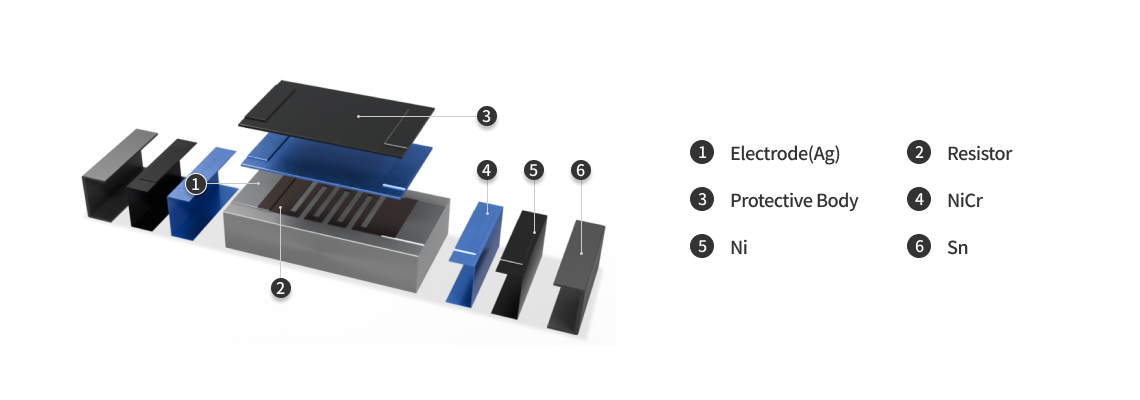

Resistor Realized with Thin Metal

Compared with general products, this is a high-precision product in which the structure of the resistor is made of thin metal
for high-precision characteristics. It has ultra-precise resistance deviation and highly accurate temperature change characteristics.

Thin Film Resistor
Long Term high stability high precision, Low T.C.R.
Applicable to Precision Measurement, Converters, Server Boards, Telecom, and Headsets
Achievement of a Higher Level of Sulfur Resistance
than The International Standard ASTM B 809-95
Unique Material Technology Enables Performance under the Highest Level of Corrosive Conditions (105℃/720hr)

Thin Film

Thin Film Lineup - Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], T.C.R [ppm/℃], Resistance Range, Operation Temperature Range [℃]
Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 T.C.R
[ppm/℃]		 Resistance
Range		 Operation
Temperature
Range [℃]
RT1005 0402(1005) 1/16 ±0.10%
±0.25%		 ±25ppm/℃ 100~47KΩ -55~155℃
RT1608 0603(1608) 1/10

Application

Lineup

Product Search
