Wide Camera Module
It is a slim OIS/ AF mobile camera module capable of high-resolution shooting up to 200M. The 200-megapixel Tetra Square sensor
(4x4 binning) enables effective response in low-light environments, and an impact-resistant and high-reliability actuator has been applied
in response to the increase in size and weight when applying large caliber lenses due to the increase in sensor size.
Large Angle Compensation OIS adopts a solution that increases the compensation angle for hand shakes from ± 1.5˚ to ± 3.0˚,
enabling stable video shooting even in moving environments.

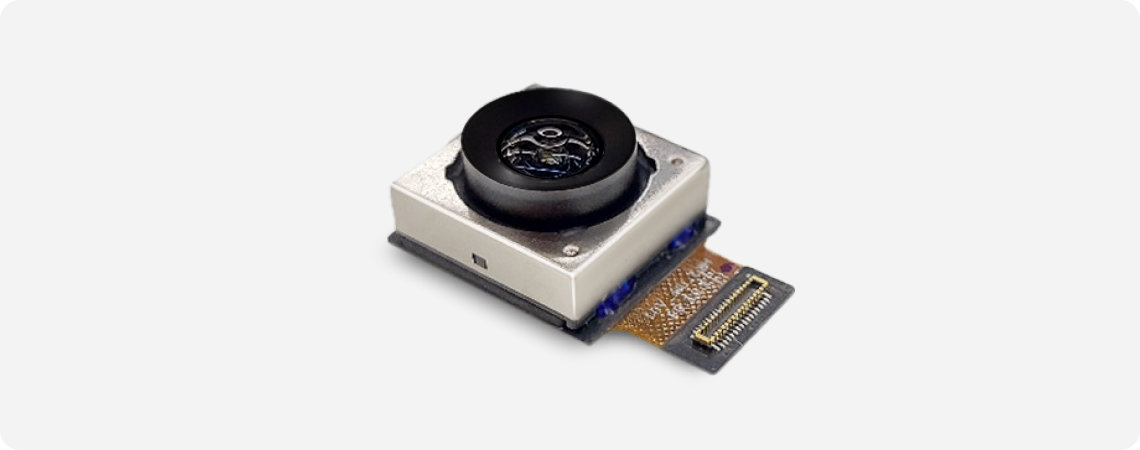

200M Wide, OIS/AF Camera Module
- Module 200M 1/1.3", FOV (Field Of View, Angle of view) 85.3
- Lens Super Resolution, NPS (Nano Porous Surface) Coating Lens
- OIS Large Angle Compensation OIS (Ball Guide)
- Zoom x1 ~ x3 (Crop Zoom)
Technical Specification
| Sensor | Resolution | 200M |
|---|---|---|
| Optical Format | 1/1.3" | |
| Pixel Size | 0.6um | |
| Lens | Construction | 7P |
| FOV (Field Of View, Angle of view) | 85.3° | |
| F# | 1.7 | |
| TTL (Total Track Length) | 7.2mm | |
| Actuator | Type | Large Angle Compensation, Ball Guide Type OIS |
Iris Camera Module
In addition to high-resolution shooting with a large sensor of up to 50M 1", F# adjustment allows you to optimize your shooting
depending on the environment. Choose a low F# for bright photos or a Bocke effect, or a high F# for sharp shots at great depth.
After introducing the 2-step iris in 2019, we commercialized the 4+ multi-step iris in 2023.

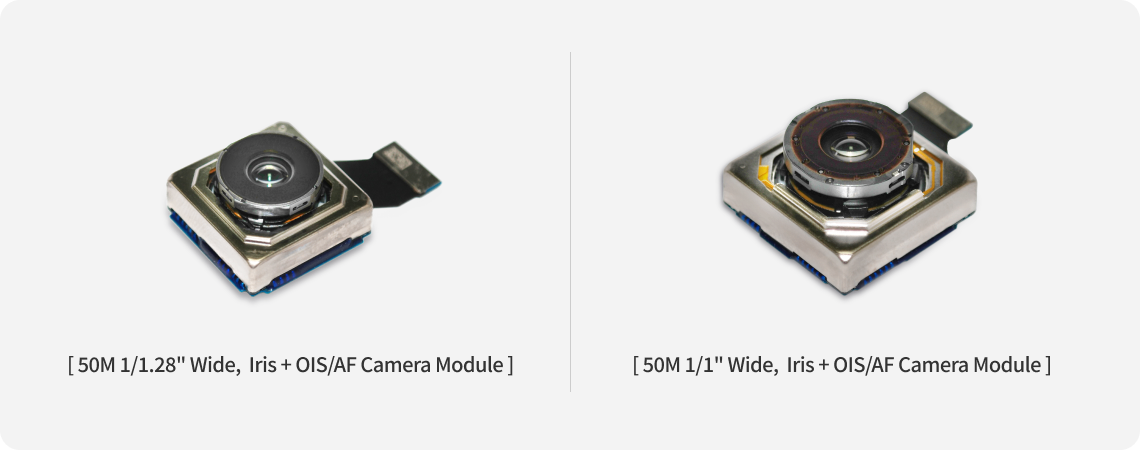

50M Wide, Iris + OIS/AF Camera Module
- Module
- 50M 1/1.28", FOV (Field Of View, Angle of view) 84.1
- 50M 1/1", FOV (Field Of View, Angle of view) 85
- F#
- 1.4 / 2.0 / 2.8 / 4.0 (4-step operation)
- 1.69 / 2.0 / 2.8 / 4.0 (4-step operation)
Technical Specification
| 50M 1/1.28" Multi Step Iris | 50M 1/1" Multi Step Iris | ||
|---|---|---|---|
| Sensor | Resolution | 50M | 50M |
| Optical Format | 1/1.28" | 1/1" | |
| Pixel Size | 1.197um | 1.6um | |
| Lens | Construction | 7P | 8P |
| FOV (Field Of View, Angle of view) | 84.1° | 85° | |
| F# | 1.4 / 2.0 / 2.8 / 4.0 | 1.69 / 2.0 / 2.8 / 4.0 | |
| TTL (Total Track Length) | 8.32mm | 10.05mm | |
| Actuator | Type | OIS+Iris_Wide | OIS+Iris_Wide |
Tele Camera Module - Vertical
General module type camera module with ultra-small 2-3.2x optical zoom and optical image stabilization (OIS).

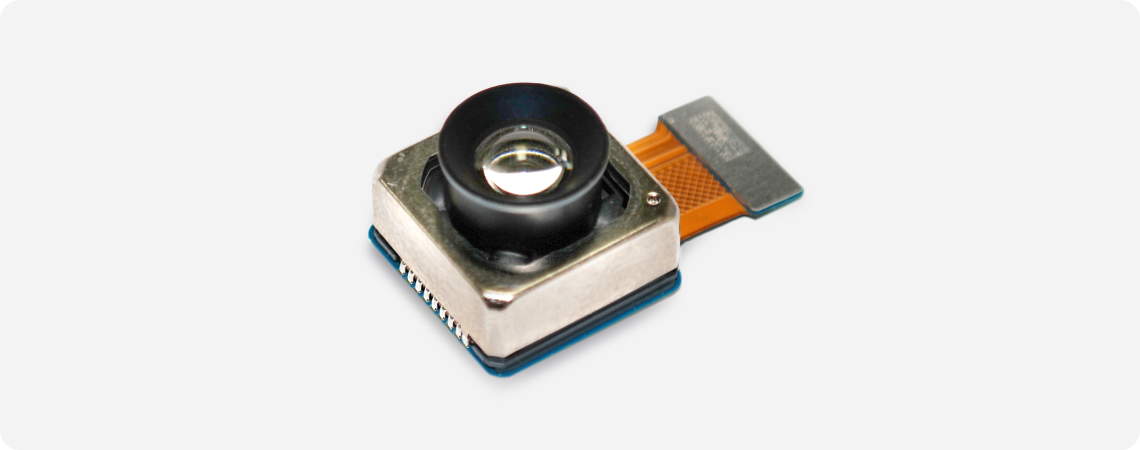

50M 3.2x Optical Zoom, Vertical Type Tele, OIS/AF Camera Module
- Module 50M 1/2.51", FOV (Field Of View, Angle of view) 39.6
- Zoom 3.2x
- OIS Ball Guide Type, Lens Shift OIS
- AF Ball Guide Type, Lens Shift AF
Technical Specification
| Sensor | Resolution | 50M |
|---|---|---|
| Optical Format | 1/2.51" | |
| Pixel Size | 0.7um | |
| Lens | Construction | 6P |
| FOV (Field Of View, Angle of view) | 39.6° | |
| F# | 1.83 | |
| TTL (Total Track Length) | 9.2mm | |
| Actuator | Type | OIS_Tele (3.2x) |
Tele Camera Module - Folded
A folded-type camera module that provides a slim/ultra-small tele zoom (telephoto zoom) function to realize DSLR-level high-definition,
high-magnification optical zoom function for mobile use. It is the world’s first to apply 2-axis prism tilt OIS and uses a high-definition
slim lens to reduce the height. It currently has a product lineup with optical zoom magnification from 3x to 10x.

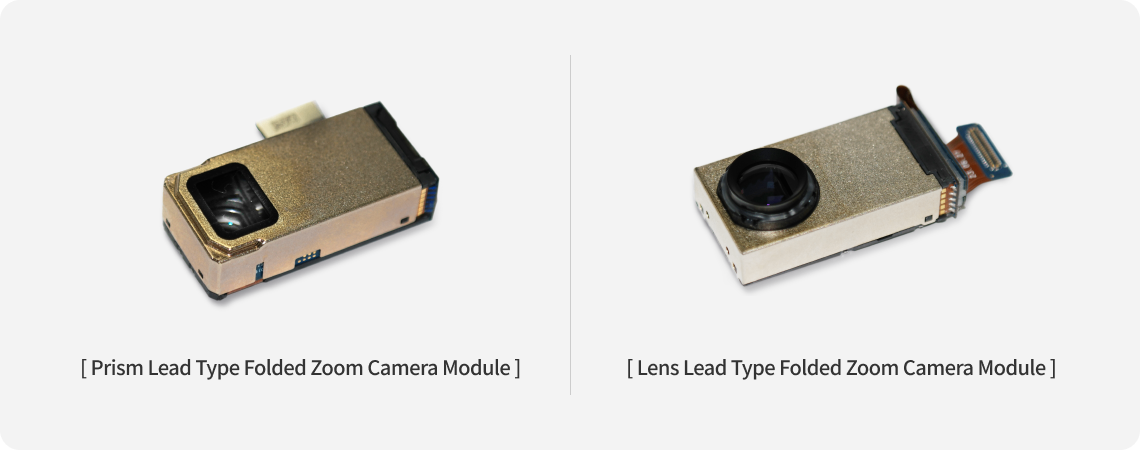

Compared to Prism Lead Type where the prism is visible, the Lens Lead Type Folded Zoom Camera Module is a product
with enhanced aesthetic design and has been slimmed down to show the circular lens.
50M 5x Optical Zoom, Folded Type Tele, OIS/AF Camera Module
- Module
- 50M 1/2.5", FOV (Field Of View, Angle of view) 20.74,
Prism Lead Type - 50M 1/2.57", FOV (Field Of View, Angle of view) 21.5,
Prism Lead Type
- Zoom
- 5x Optical Zoom
- 5x Optical Zoom
- Size
- 31.76㎜ x 15.4 x 8.55t
- 28.03㎜ x 14.6 x 5.7t
- OIS
- Ball Guide Type, Prism Tilt OIS
- Ball Guide Type, Prism Tilt OIS
- AF
- Ball Guide Type, Lens Shift AF
- Ball Guide Type, Lens Shift AF
Technical Specification
| Prism Lead Type | Lens Lead Type | ||
|---|---|---|---|
| Sensor | Resolution | 50M | 50M |
| Optical Format | 1/2.5" | 1/2.57" | |
| Pixel Size | 0.7um | 0.7um | |
| Lens | Construction | 6P | 1Group 1P + 2Group 5P |
| FOV (Field Of View, Angle of view) | 20.74° | 21.5° | |
| F# | 2.53 | 3.4 | |
| TTL (Total Track Length) | 18.45mm | 14.19mm | |
| Actuator | Type | OIS_F-Zoom (5x, 30㎝~∞) | OIS_Lens Lead F-Zoom (5x) |
Ultrawide Camera Module
Wide Camera Module (FOV_field of view, angle of view 70~90 degrees) that can cover a wider area on the screen than the regular Wide Camera Module (FOV 100 degrees or more), providing wide background images and sharp video quality with the autofocus function.

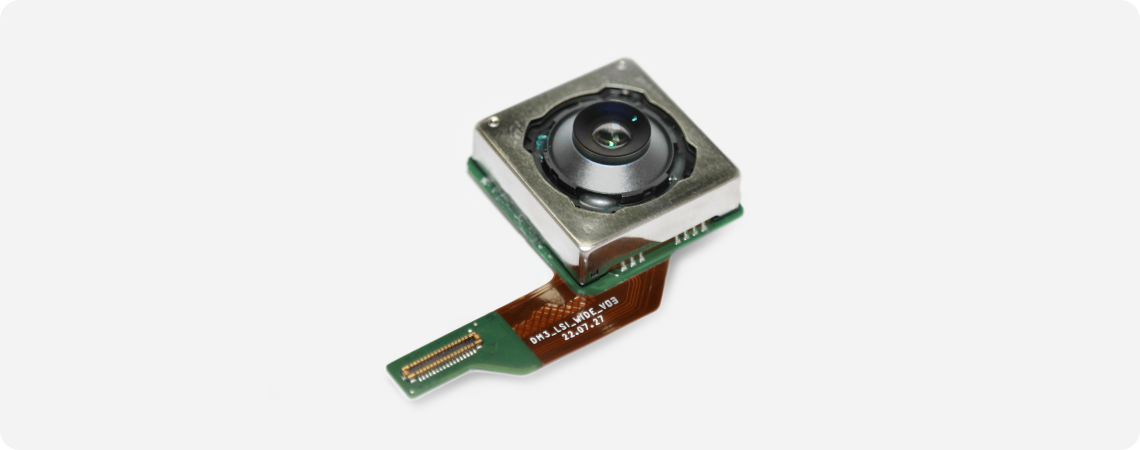

50M Ultrawide, AF Camera Module
- Module 50M 1/2.51", FOV (Field Of View, Angle of view) 121.6
- AF Ball Guide Type, Lens Shift AF
Technical Specification
| Sensor | Resolution | 50M |
|---|---|---|
| Optical Format | 1/2.51" | |
| Pixel Size | 0.7um | |
| Lens | Construction | 7P |
| FOV (Field Of View, Angle of view) | 121.6° | |
| F# | 1.87 | |
| TTL (Total Track Length) | 8.05mm | |
| Actuator | Type | AF_UW |
Mobile Camera Modules Lineup
Various lens features, various sensors features, and various mechanical functions can be combined,
such as OIS/AF and optical zoom, into a camera.
* You can find detailed information on each feature and function by clicking on the box.
| Resolution | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| ~12M | 13M | 16M | 20M | 48M | 50M | 64M | 108M | 200M | |
| Single | |||||||||
| Dual | |||||||||
| Triple | |||||||||
| Quad | |||||||||
